GT360
GT系列四沖程(OHV)通用汽油發動機 ● 廣泛應用于建筑設備、工程機械、農業機械、船舶、泵和其他工業行業 ● 具有卓越的性能，穩定的可靠性、經濟性、耐久性和良好的操作性 ● 可適配電子點火啟動方式，配備電啟動操作箱， 操作簡便 更輕松
產品詳情
|
Engine technisal data sheer 發動機技術參數 |
||
|
Modie 型號 |
GT360 |
GT360E |
|
Type 類型 |
Single cylinder,4-stroke,horizontal shaft,OHV,inclined gasoline engine 單缸.四沖程.水平軸.頂置氣門.斜置式汽油機 |
|
|
Displacement(Bore*Stroke) 排量（缸徑*行程） |
357cc(85*63mm) |
|
|
Compression ratio 壓縮比 |
8.2:1 |
|
|

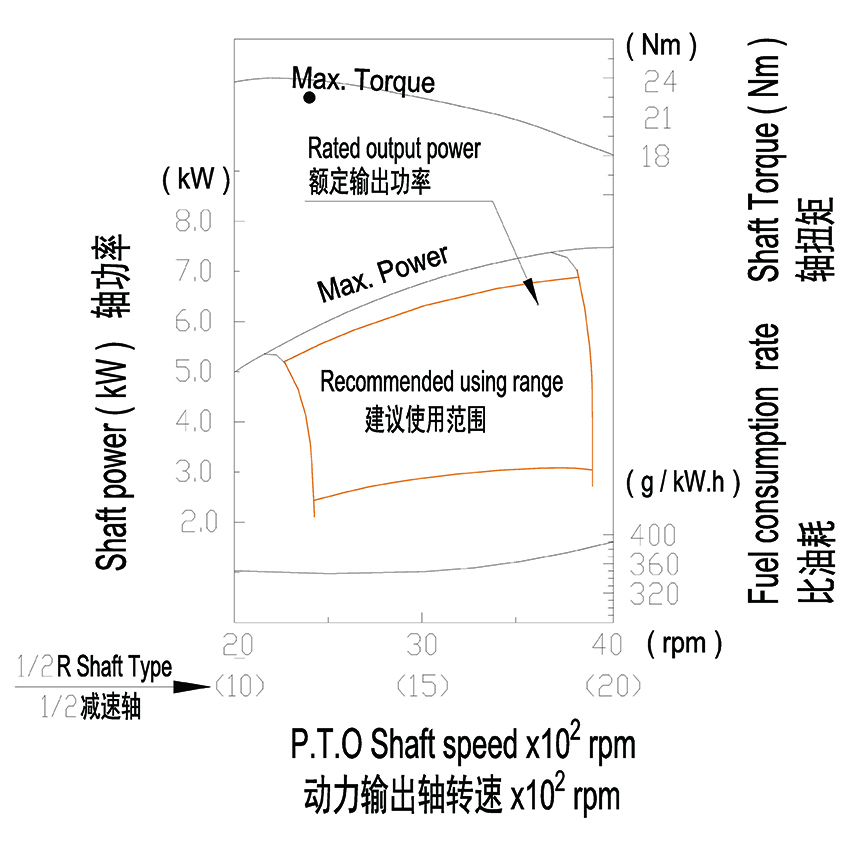

Max.output power/speed 最大輸出功率/轉速 |
7.8kW/3600 rpm |
|
|
Rated output power/speed 額定輸出功率/轉速 |
7.1kW/3600 rpm |
|
|
Max.torque/speed 最大扭矩/轉速 |
24Nm/2400 rpm |
|
|
Aspiration system 吸氣方式 |
Natural 自然吸氣 |
|
|
Cooling system 冷卻系統 |
Forced-air cooling by flywheel fan 飛輪風扇強制風冷 |
|
|
Start system 啟動方式 |
Hand recoil start 手拉反沖啟動 |
Electric start/DC12V電啟動 |
|
Lubrication system and Crankcase ventilation 潤滑系統與曲軸箱通風 |
Atomized splash lubrication,With One-way valve blade forced ventilation 油霧飛濺潤滑，并單向閥片式強制通風 |
|
|
Lgnition system 點火系統 |
Transistor Controlled Ignition-T.C.I系統 |
|
|
Spark plug 火花塞 |
F7TC.(or F7TRC.orNGK BPR4ES) |
|
|
Rotation direction 旋轉方向 |
Clockwise,view from flywheel 順時針（從飛輪端看） |
|
|
Governor system 調速方式 |
Mechanical governor 機械調速 |
|
|
Fuel type 燃油規格 |
93-（RON）,Vehicle unladed gasoline 93#以上無鉛汽油 |
|
|
Lubrication oil type 潤滑油規格 |
4-Stroke gasoline engine oil,APL-SFclass or higher Such as SAE 10W-30 四沖程汽油機機油，APL-SF或更高等級，如：SAE10W-30. |
|
|
Fuel consumption rate 比油耗 |
364g/kW/h |
|
|
Lubrication oil consumption 潤滑油消耗 |
Equal to about 1%-1.2% of the fuel consumption 約為燃油消耗的1%-1.2% |
|
|
Carburetor modle 化油器型號 |
P26G-1 |
|
|
Muffler 消聲器類型 |
Anti-resonator muffer 抗振諧振腔消聲器 |
|
|
Fuel tank capacity 燃油箱容量 |
6.7L |
|
|
Lubrication oil capacity 潤滑油量 |
1.1L |
|
|
Engine noise level發動機噪聲 |
Sound power level 聲功率聲級：< 75dB(A) |
|
|
Net.Weight 凈重 |
33Kg |
36Kg |
|
Unpackaged dimension(L*W*H)凈尺寸 |
399*451*445mm |
399*500*445mm |
|
Packing dimension(L*W*H)裝箱尺寸 |
420*520*485mm |
|
|
Engine quality standards: 發動機質量標準： Techno-standard of the engine is according toJB/T5135.1-2013; 發動機技術標準執行 JB/T5135.1-2013; Fire protection-standard of the engine is according to GB4556-2001; 發動機防火標準執行 GB4556-2001; Safety、noise and gas emission-standard of the engine is conforming 發動機安全、噪聲和廢氣排放符合GB20651.2-2014、 To GB20651.2-2014、GB15739 and GB26133-2010. GB15739和GB26133-2010. |
||
|

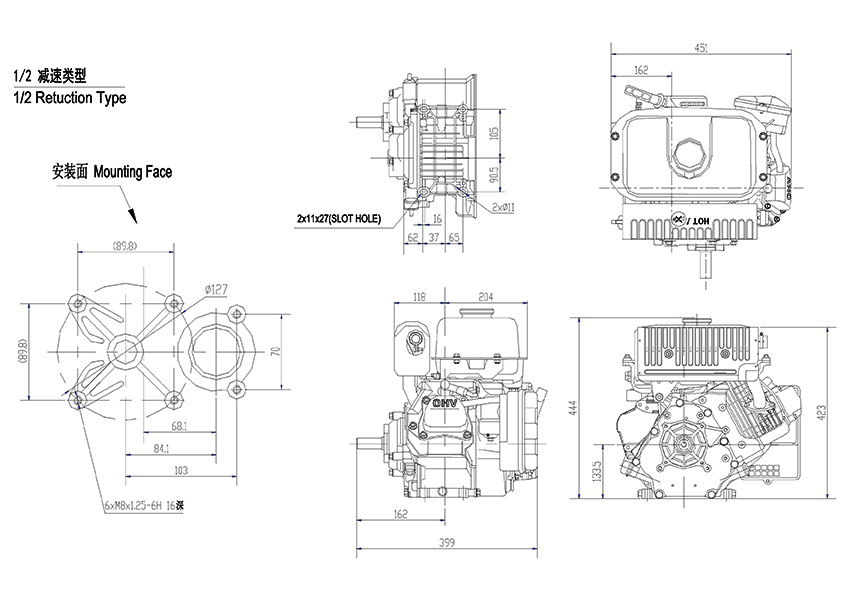

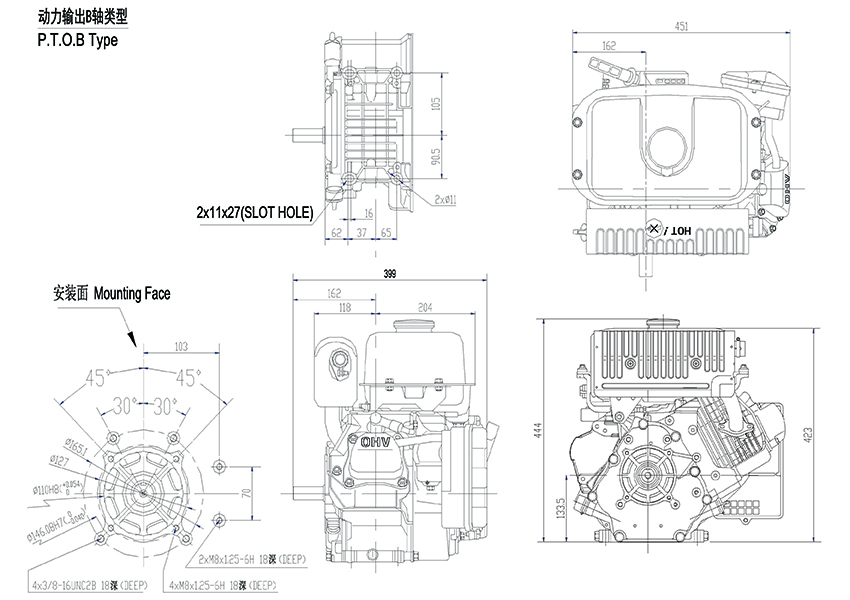

Engine basic dimensions 發動機基本尺寸 |
|
|
|
|
|
|
|
|
|

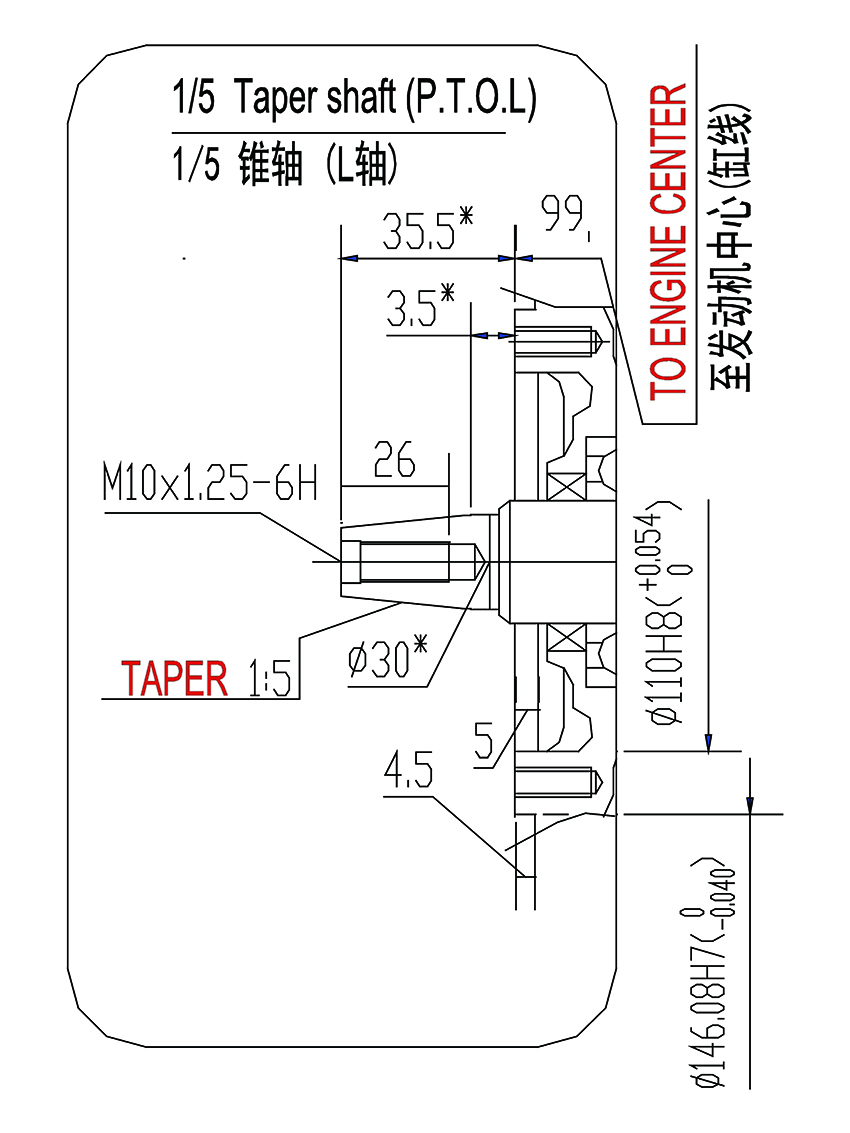

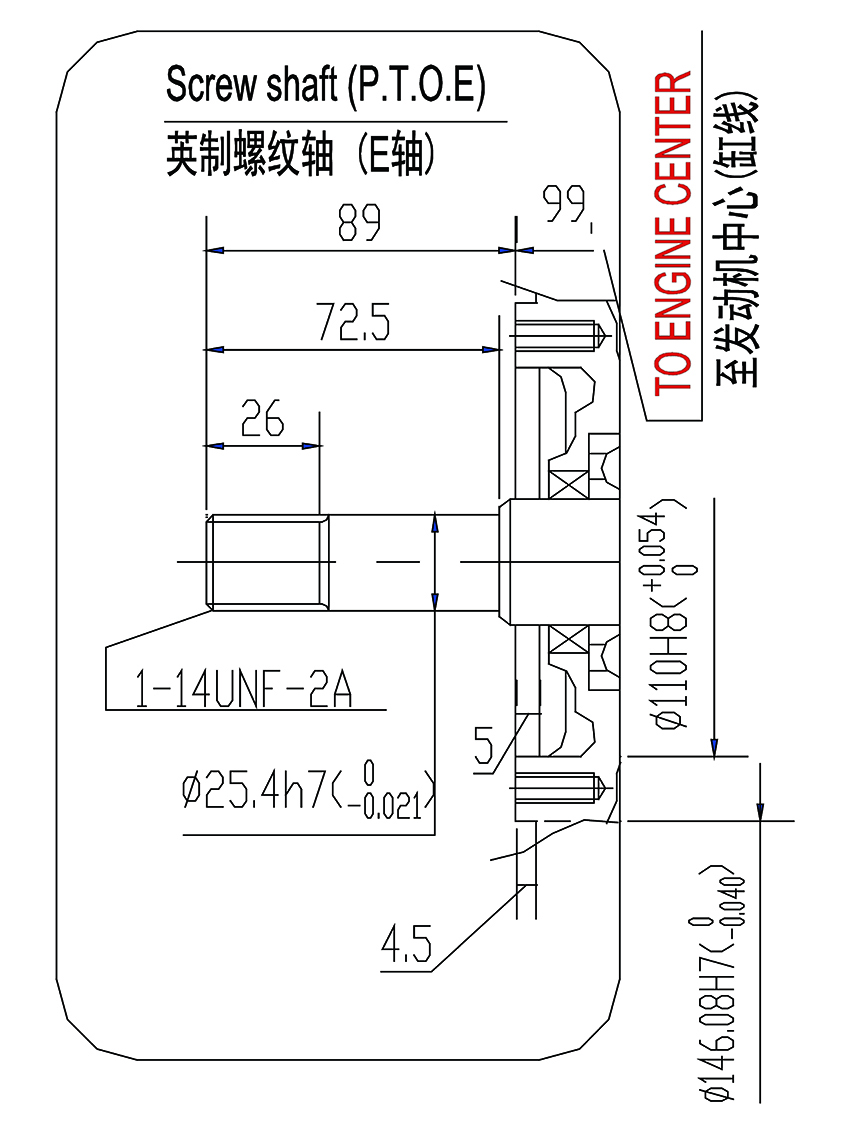

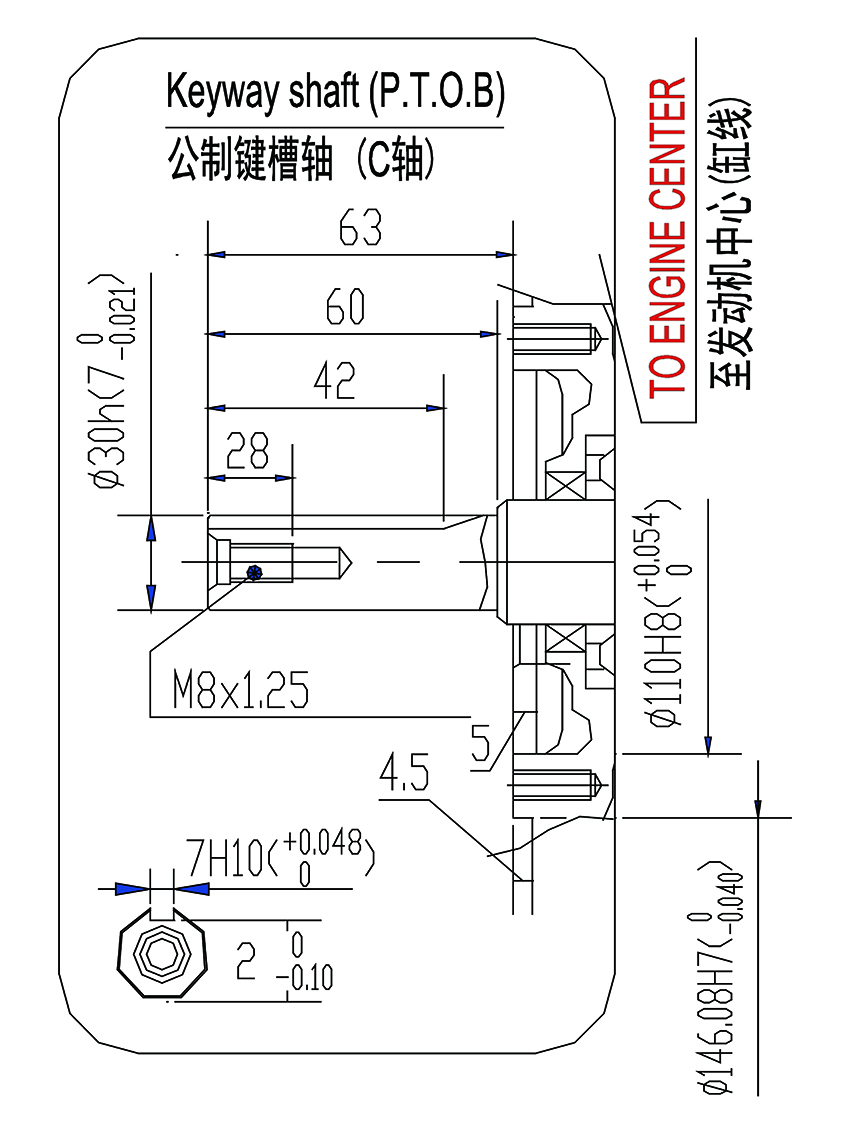

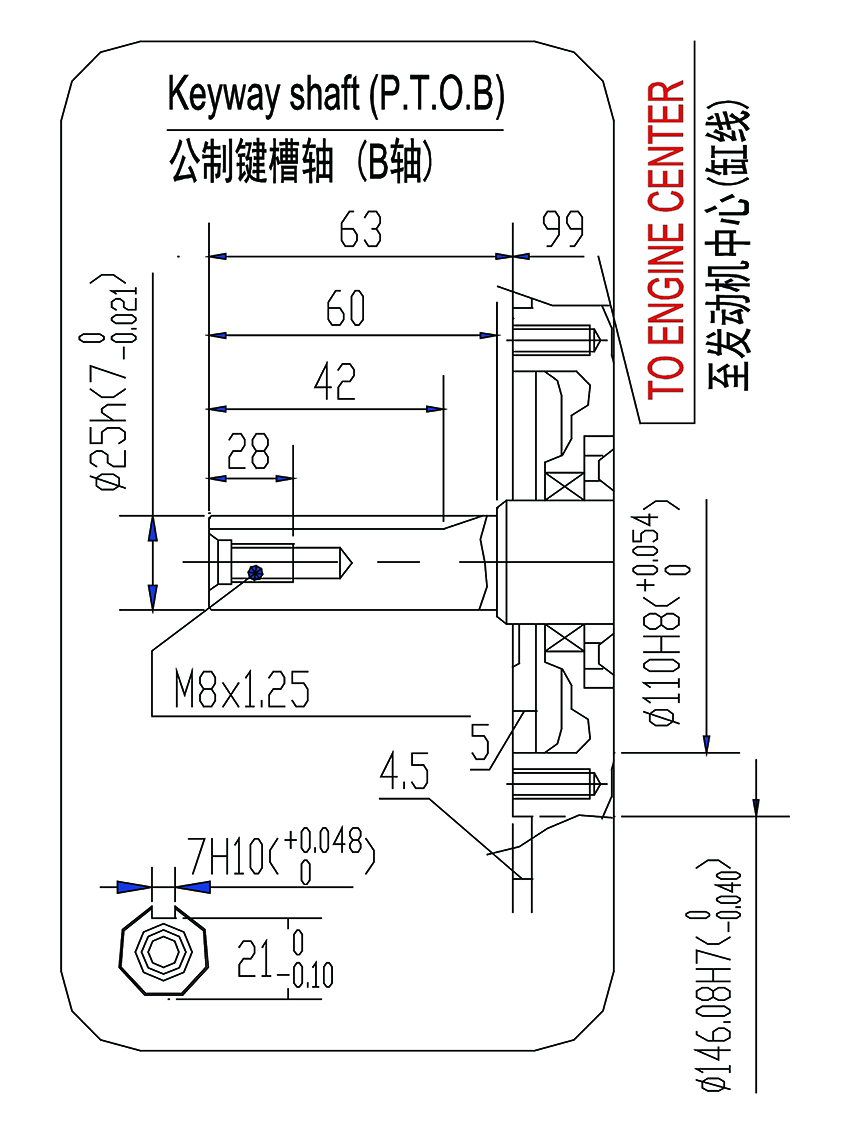

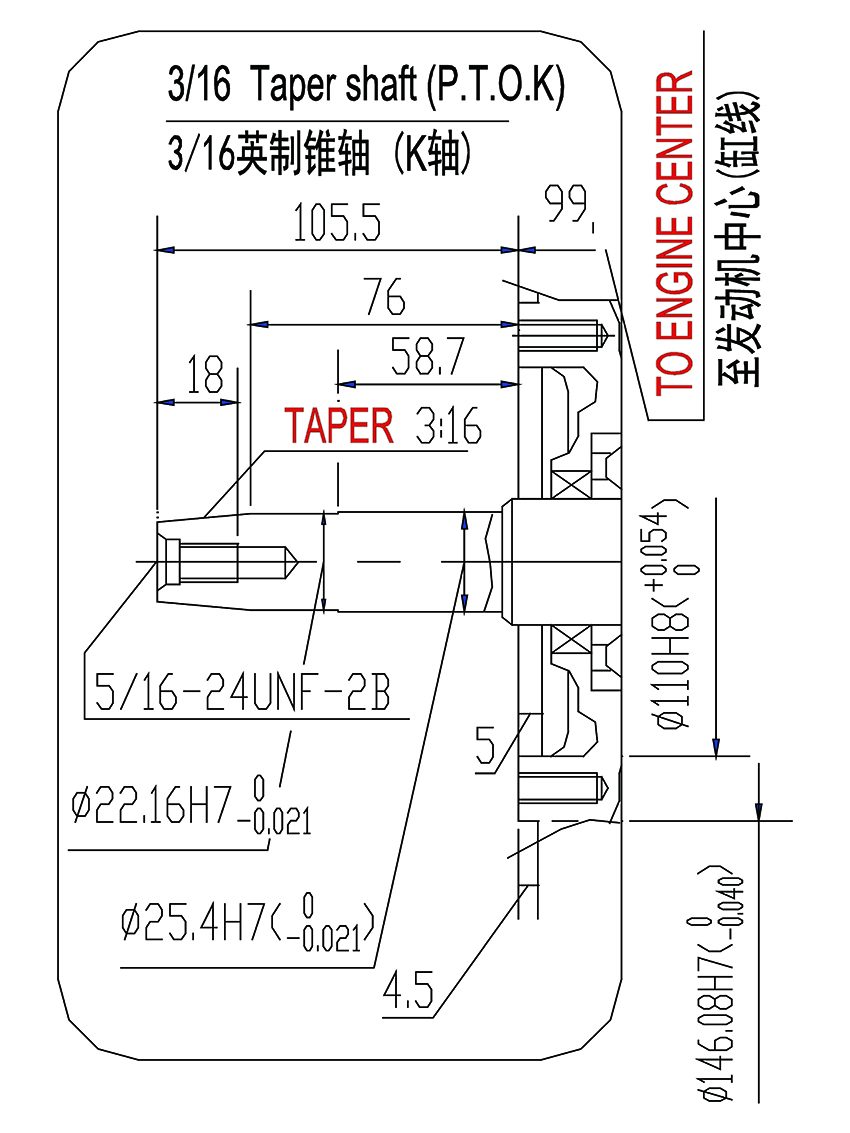

Engine P.T.O. shaft dimensions 發動機動力輸出軸尺寸 |
|
|
