Engine technisal data sheer 發動機技術參數

Modie 型號

GT200R/E

Type 類型

Single cylinder,4-stroke,horizontal shaft,OHV,inclined gasoline engine

             單缸.四沖程.水平軸.頂置氣門.斜置式汽油機

Displacement(Bore*Stroke) 排量（缸徑*行程）

185cc(68*50mm)

Compression ratio 壓縮比

8.8:1

Max.output power/speed 最大輸出功率/轉速

4.2kW/1800 rpm

Rated output power/speed 額定輸出功率/轉速

  4.0kW/1800 rpm

Max.torque/speed 最大扭矩/轉速

24.8Nm/1200 rpm

Aspiration system 吸氣方式

Natural 自然吸氣

Cooling system 冷卻系統

Forced-air cooling by flywheel fan 飛輪風扇強制風冷

Start system 啟動方式

Hand recoil start 手拉反沖啟動/Electric start/DC12V電啟動

Lubrication system and Crankcase ventilation

潤滑系統與曲軸箱通風

Atomized splash lubrication,With One-way valve blade forced ventilation

油霧飛濺潤滑，并單向閥片式強制通風

Lgnition system 點火系統

Transistor Controlled Ignition-T.C.I系統

Spark plug 火花塞

F7TC.(or F7TRC.orNGK BPR4ES)

Rotation direction 旋轉方向

Clockwise,view from flywheel 順時針（從飛輪端看）

Governor system 調速方式

Mechanical governor 機械調速

Fuel type 燃油規格

93-（RON）,Vehicle unladed gasoline 93#以上無鉛汽油

Lubrication oil type 潤滑油規格

4-Stroke gasoline engine oil,APL-SFclass or higher Such as SAE 10W-30

四沖程汽油機機油，APL-SF或更高等級，如：SAE10W-30.

Fuel consumption rate 比油耗

365g/kW/h

Lubrication oil consumption 潤滑油消耗

Equal to about 1%-1.2% of the fuel consumption 約為燃油消耗的1%-1.2%

Carburetor modle 化油器型號

P20G-4

Muffler 消聲器類型

Anti-resonator muffer 抗振諧振腔消聲器

Fuel tank capacity 燃油箱容量

4.5L

Lubrication oil capacity 潤滑油量

0.6L

Engine noise level發動機噪聲

Sound power level 聲功率聲級：LwA < 72dB(A)

Net.Weight 凈重

18.7Kg/19.7Kg

Unpackaged dimension(L*W*H)凈尺寸

353*352*370mm /353*430*370mm

Packing dimension(L*W*H)裝箱尺寸

398*398*417mm

398*450*417mm

Engine quality standards:                                             發動機質量標準：

Techno-standard of the engine is according toJB/T5135.1-2013;         發動機技術標準執行 JB/T5135.1-2013;

Fire protection-standard of the engine is according to GB4556-2001;   發動機防火標準執行 GB4556-2001;

Safety、noise and gas emission-standard of the engine is conforming   發動機安全、噪聲和廢氣排放符合GB20651.2-2014、

To GB20651.2-2014、GB15739 and GB26133-2010.                          GB15739和GB26133-2010.

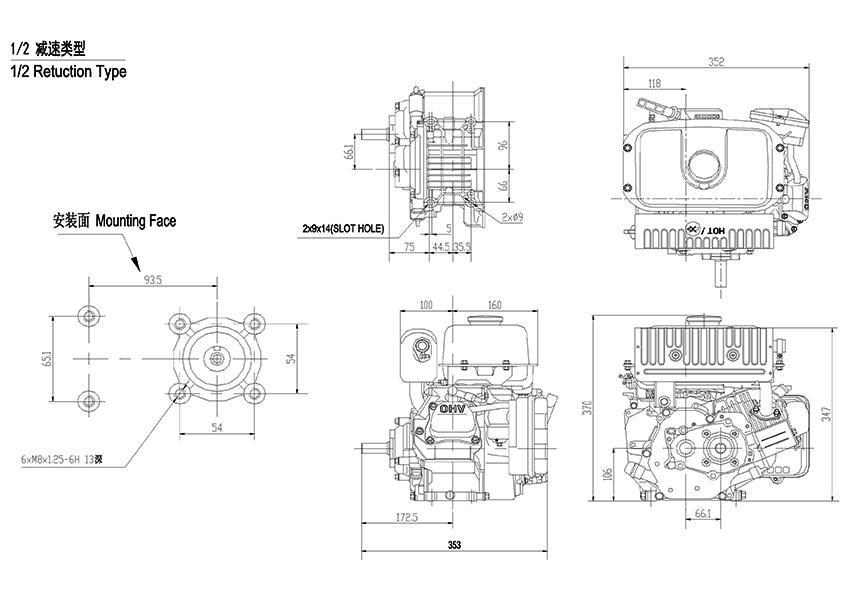

Engine basic dimensions 發動機基本尺寸

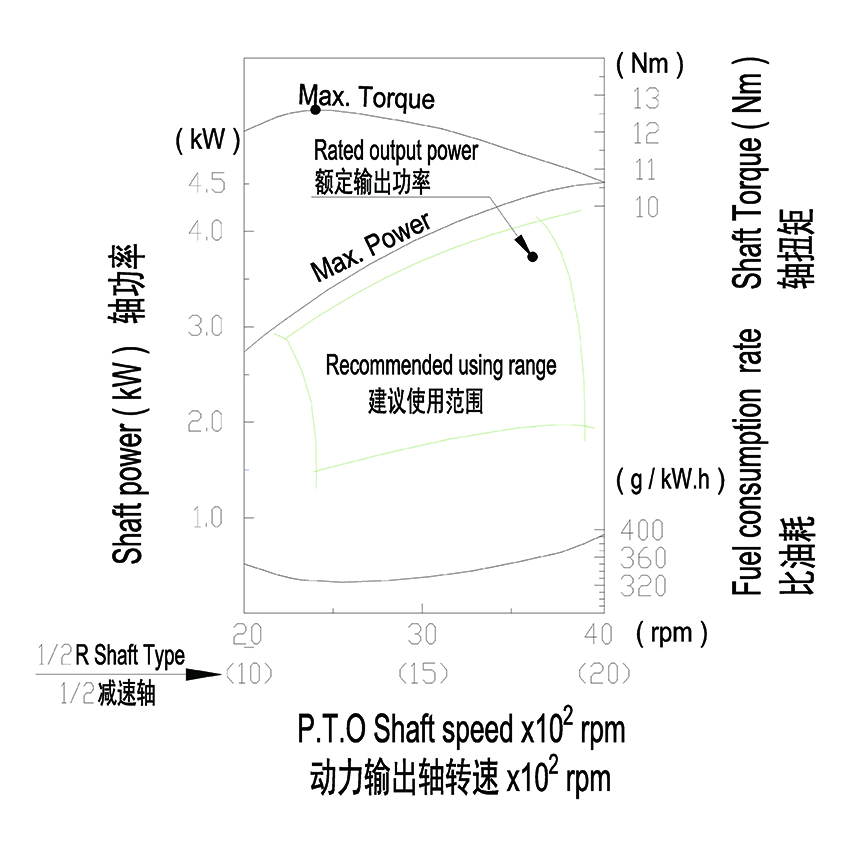

Engine performance curve 發動機性能

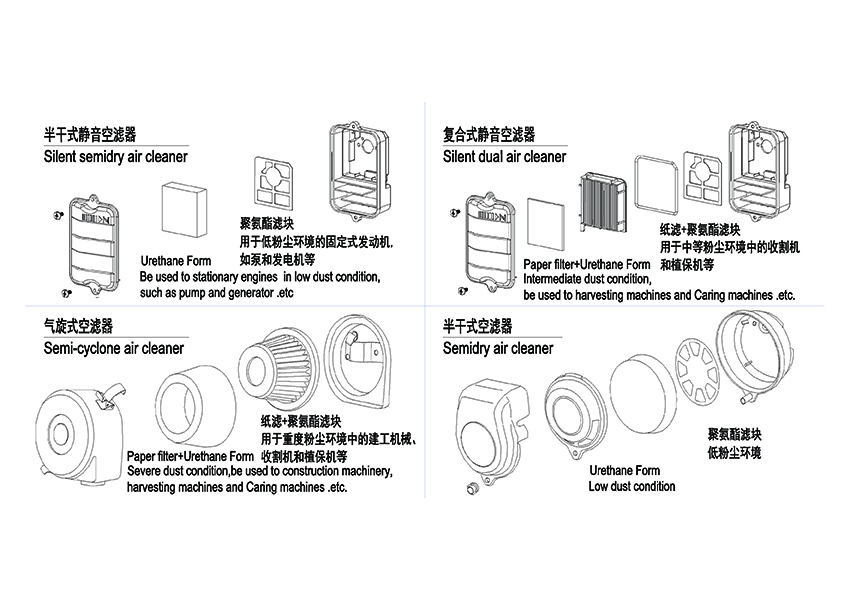

Air cleaner selection 空濾器

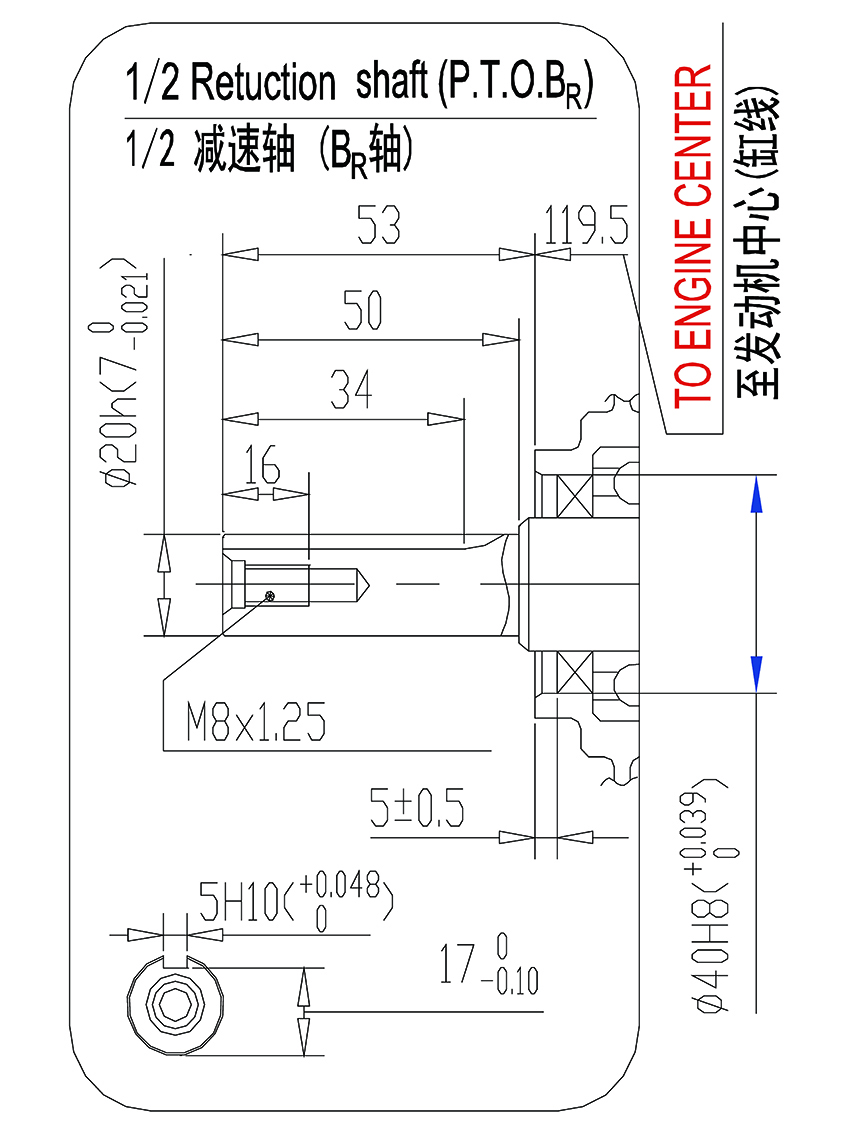

Engine P.T.O. shaft dimensions 發動機動力輸出軸尺寸
