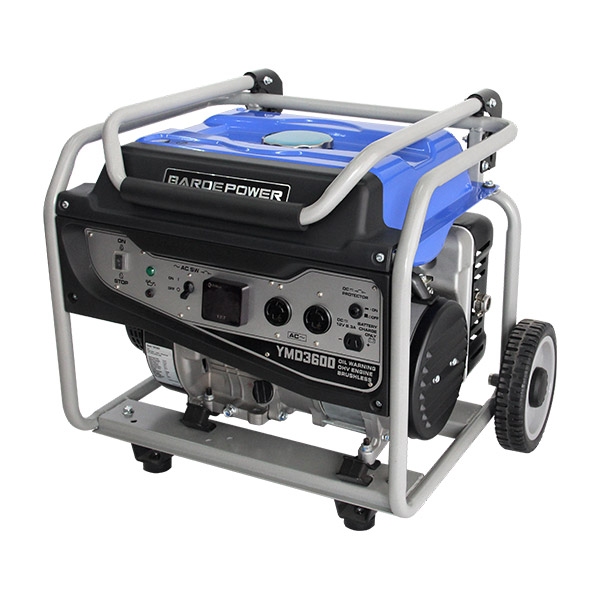

YMD3600E/YMD4600E
YMD系列電啟動汽油發電機組 ● 全面革新升級、更高效、更穩定 ● 采用高強度可折疊便攜移動輪式框架，特別適合戶外作業需求，便攜性高，在嚴苛環境下亦能高效運作 ● 采用全銅無刷免維護電機，發電效率更高，輸出電壓更穩定，超大油箱，使用操作舒適便利 ● 一鍵電門鎖啟動，豐富的液晶數顯電壓、頻率及累時等功能，全系標配DC12V電壓輸出插座
產品詳情
|
Specification sheet 規格表 |
||||||
|
Modle 型號 |
YMD3600E |
YMD4600E |
||||
|
Type 類型 |
Single-phase.Brush-less,4-Stroke gasoline engine AC Generator 單相、無刷、四沖程汽油交流發電機 |
|||||
|
Rated voltage (V) 額定電壓 |
220/230 |
120/240 |
220/230 |
120/240 |
||
|
Frequency (Hz) 頻率 |
50 |
60 |
50 |
60 |
||
|
Rated output (kVA) 額定輸出 |
2.0 |
2.3 |
2.5 |
2.8 |
||
|
Max output (kVA) 最大輸出 |
2.3 |
2.6 |
2.8 |
3.0 |
||
|
Rated current (A) 額定電流 |
9.1/8.7 |
19.2/9.6 |
11.4/10.9 |
23.3/11/7 |
||
|
Power factor 功率因素 |
1.0 |
1.0 |
||||
|
Phase number 相數 |
Single |
Single |
||||
|
DC output (Selectable unit) 直流輸出(選用件) |
12V-8.3A |
12V-8.3A |
||||
|
Protection system 保護系統 |
Over-current,short circuit protection,and low-oil level protection 過電流、短路,和低油位保護 |
|||||
|
Starting method 啟動方式 |
Hand recoil start/Electric motor start 手拉反沖啟動/電子馬達啟動 |
Hand recoil start/Electric motor start 手拉反沖啟動/電子馬達啟動 |
||||
|
Gasoline Engine 汽油機 |
Modle 型號 |
GT175E |
GT200E |
|||
|
Displacement 排量（cm³） |
171 |
185 |
||||
|
Fuel tank availability capacity (L) 燃油箱有效容積 |
12.5 |
|||||
|
Continuous operating hours (Hr) 連續工作時間 |
12 |
10 |
10 |
8.8 |
||
|
Fuel standard 燃油規格 |
93-[RON] or 84-[MON],Vehicle unleaded gasoline 93-[RON] 或 84-[MON].車用無鉛汽油 |
|||||
|
Engine oil standard 機油規格 |
4-Stroke gasoline engine oil, APL- SF class or higher.Such as SAE 10W-30 四沖程汽油機機油,APL-SF 級或更高等級.如：SAE10W-30 |
|||||
|
GenSet noise level (LWP) 機組噪聲 |
≤64dB(A)-7M |
|||||
|
Generator set configuration 機組構型 |
Frame structure with the wheels 輪式框架結構 |
Frame structure with the wheels 輪式框架結構 |
||||
|
Net.Weight (Kg) 凈重 |
47kg |
50kg |
||||
|
Dimension (LxWxH mm) 尺寸 |
520*425*535 |
|||||
|
|
||||||
|
Low oil level warning lamp 低機油位報警燈 |
● |
|
Output indicator lamp 輸出指示燈 |
● |
|
Single phase circuit breaker 單相過載斷路保護器 |
● |
|
Voltage meter 電壓表 |
● |
|
AC Socket 交流插座 |
● |
|
AC Plug 交流插頭 |
● |
|
DC Socket or terminal rod DC插座或接線柱 |
● |
|
DC Overcurrent breaker 直流過流斷路器 |
● |
|
Fuel level gauge 燃油位指示計 |
● |
|
Moving wheel and Pull rod 移動輪和拉桿 |
● |
|
Performanc,Quality and standard 性能、品質與標準 |
|
Protection class防護等級 : IP23M
Performance Grade性能等級 : G2
Quality Class質量等級 : A
Insulation grade of the generators電機絕緣等級 : F / H
|
|
Standard reference conditions : 25°C air inlet temperature； 1000 mbar；30% relative humidity. 標準環境條件：空氣溫度25°C；濕度30%；氣壓1000毫巴。 Techno-standard of the generator is according to JB/T 10304 -2001. Fire protection-standard of the gasoline engine is according to GB 4556-2001. 發電機技術標準執行JB/T 10304 -2001 .汽油機防火標準執行 GB 4556-2001 |
